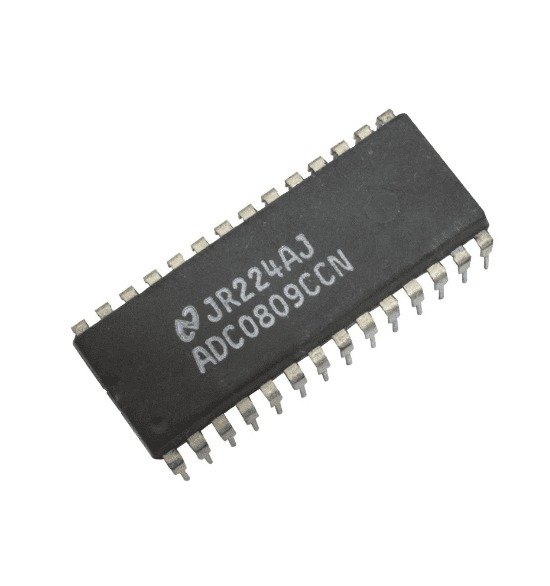

ADC0809 Analog To Digital Converters
The ADC0809 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, 8-channel multiplexer and microprocessor compatible control logic. The 8-bit A/D converter uses successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register. The 8-channel multiplexer can directly access any of 8-single-ended analog signals.
The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE outputs.
The design of the ADC0809 has been optimized by incorporating the most desirable aspects of several A/D conversion techniques. The ADC0809 offers high speed, high accuracy, minimal temperature dependence, excellent long-term accuracy and repeat-ability, and consumes minimal power. These features make this device ideally suited to applications from process and machine control to consumer and automotive applications.
Features:
- Easy Interface to All Microprocessors.
- Operates Ratio-metrically or with 5 VDC or Analog Span Adjusted Voltage Reference.
- No Zero or Full-Scale Adjust Required.
- 8-Channel Multiplexer with Address Logic.
- 0V to VCC Input Range.
- Outputs meet TTL Voltage Level Specifications.
- ADC0809 Equivalent to MM74C949-1.
Specifications:
| Parameters | Specification |
| Part number | ADC0809-N |
| Resolution (Bits) | 8 |
| Sample rate (Max) (kSPS) | 10 |
| Number of input channels | 8 |
| Interface | Parallel |
| Operating temperature range ( C ) | -40 to 85 |
| Package Group | PLCC | 28 |
| Power consumption (Typ) (mW) | 15 |
| Package size: mm2:W x L (PKG) | 28PLCC: 155.0025 mm² : 12.45 x 12.45 (PLCC | 28) |
| Architecture | SAR |
| Input type | Single-Ended |
| Multi-channel configuration | Multiplexed |
| Input range (Max) (V) | 6 |
| Input range (Min) (V) | 0 |
| Analog voltage AVDD (Min) (V) | 4.5 |
| Analog voltage AVDD (Max) (V) | 6 |
| Digital supply (Min) (V) | 4.5 |
| Digital supply (Max) (V) | 6 |
| INL (Max) (+/-LSB) | 1.25 |
Applications:
- Microprocessor-based data acquisition systems.
- Digital signal processing.
- Industrial process control.
- Instrumentation and measurement systems.
- Consumer electronics.
- Automotive systems.
- Medical devices.
Package Contents:
- 1x ADC0809 Analog To Digital Converters
