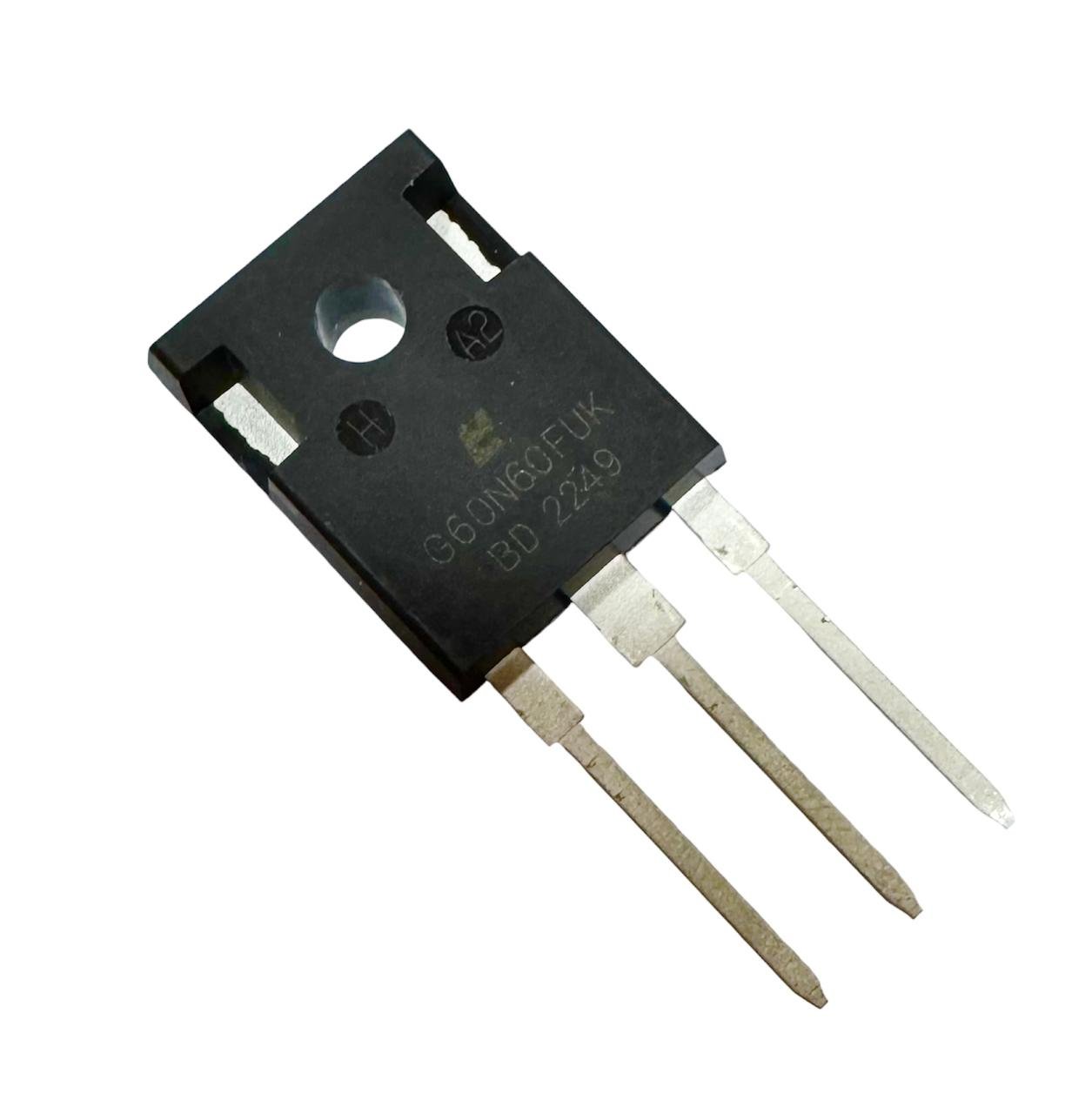

Description
IGBTs offer low switching losses, high energy efficiency and high avalanche ruggedness for motion control, solar application and welding machine.
FEATURES :-
High breakdown voltage up to 650V for
improved reliability
Trench-Stop Technology offering :
High speed switching
High ruggedness, temperature stable
Low VCEsat
Easy parallel switching capability dueto positive temperature coefficient in VCEsat
Enhanced avalanche capability
APPLICATION :-
Uninterruptible Power Supplies
Inverter
Welding Converters
PFC applications
Converter with high switching frequency
Vce = 650 V
Ic= 60 A
Vce(sat) (Ic =60A) = 1.85 V
DC collector current, limited by Tjmax
Tc= 25°C —–Ic = 120A
Tc= 100°C —–Ic = 60A
