Description

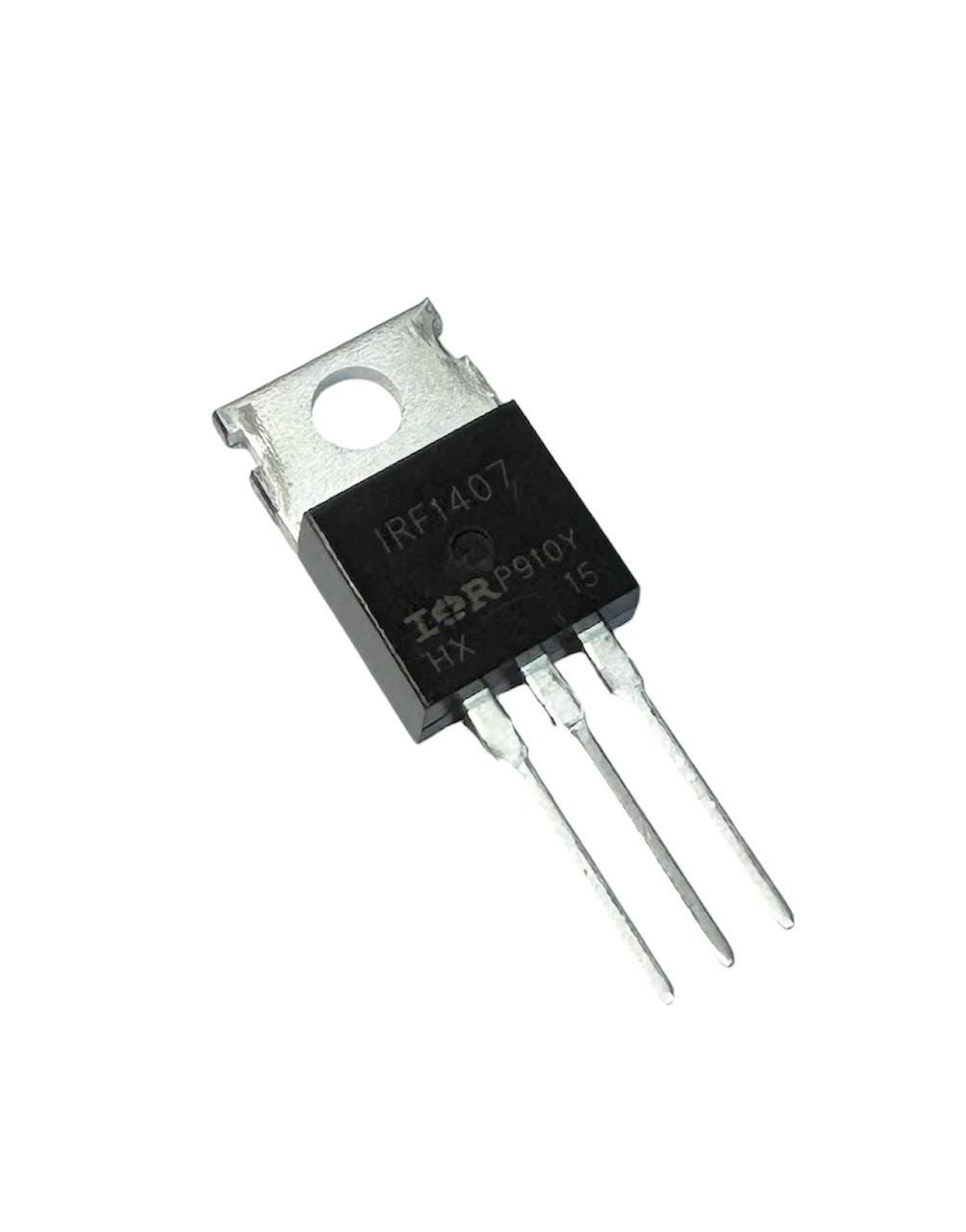

IRF1407 is Specifically designed for Automotive applications, this Stripe Planar design of HEXFET® Power MOSFETs utilizes the lastest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this HEXFET power MOSFET are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating.
These benefits combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.
Features:-
- Advanced process technology
- Ultra low on-resistance
- Dynamic dv/dt rating
- Fast switching
- Repetitive avalanche allowed up to Tjmax
Detailed Specifications:-
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Drain-Source Breakdown Voltage (Vds) | 75V |
| Continuous Drain Current (Id) | 130A |
| Drain-Source Resistance (Rds On) | 7.8mOhms |
| Gate-Source Voltage (Vgs) | 20V |
| Gate Charge (Qg) | 250 nC |
| Operating Temperature Range | -55 – 175°C |
| Power Dissipation (Pd) | 330W |
