Description

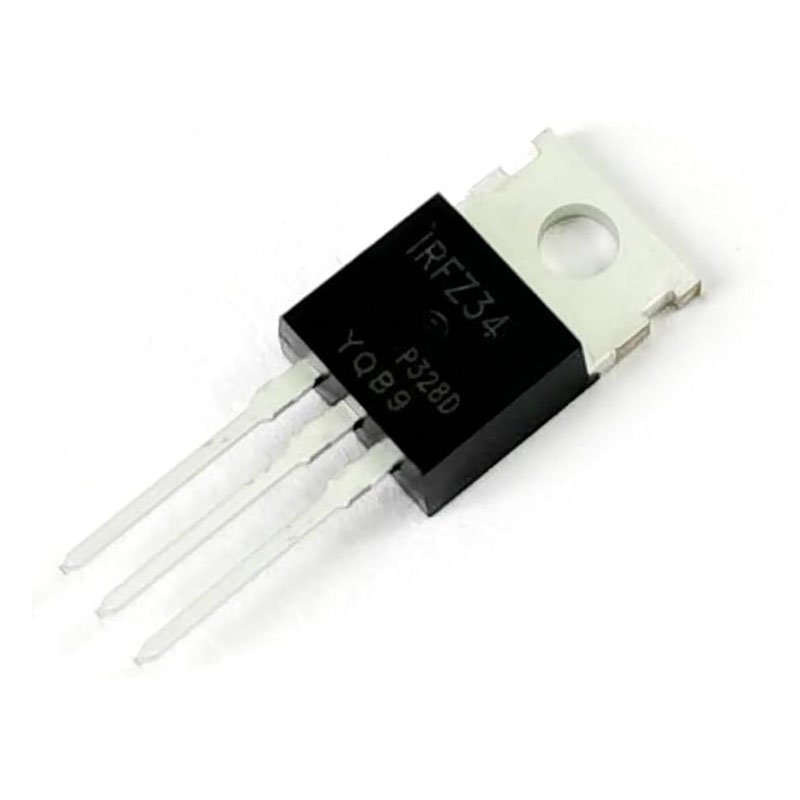

55V Single N-Channel Power MOSFET in a TO-220 package
Summary of Features
- Planar cell structure for wide SOA
- Optimized for broadest availability from distribution partners
- Product qualification according to JEDEC standard
- Silicon optimized for applications switching below <100kHz
- Industry standard surface-mount power package
- High-current rating
Benefits
- Increased ruggedness
- Wide availability from distribution partners
- Industry standard qualification
- High performance in low frequency applications
- Drop-in replacement to existing devices
- High current capability
Parametrics
| Parametrics | IRFZ34N |
|---|---|
| Budgetary Price €/1k | 0.28 |
| ID (@25°C) max | 29 A |
| Mounting | THT |
| Operating Temperature min max | -55 °C 175 °C |
| Ptot max | 56 W |
| Package | TO-220 |
| Polarity | N |
| QG (typ @10V) | 22.7 nC |
| Qgd | 9.3 nC |
| RDS (on) (@10V) max | 40 mΩ |
| RthJC max | 2.7 K/W |
| Tj max | 175 °C |
| VDS max | 55 V |
| VGS(th) min max | 3 V 2 V 4 V |
| VGS max | 20 V |
