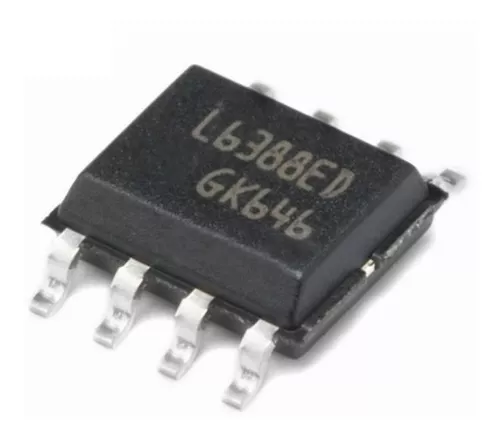

L6388 SMD (High-Voltage High and Low Side Driver)

FEATURES:
– HIGH VOLTAGE RAIL UP TO 600 V
-dV/dt IMMUNITY ± 50 V/nsec IN FULL TEMPERATURE RANGE
-DRIVER CURRENT CAPABILITY:400 mA SOURCE,650 mA SINK
-SWITCHING TIMES 70/40 nsec RISE/FALL WITH 1nF LOAD
– 3.3V, 5V, 15V CMOS/TTL INPUTS COMPARATORS WITH HYSTERESYS AND PULL DOWN
– INTERNAL BOOTSTRAP DIODE
– OUTPUTS IN PHASE WITH INPUTS
– DEAD TIME AND INTERLOCKING FUNCTION

DESCRIPTION:
The L6388 is an high-voltage device, manufactured with the BCD”OFF-LINE” technology.
It has a Driver structure that enables to drive independent referenced N Channel Power MOS or IGBT.
The Upper (Floating) Section is enabled to work with voltage Rail up to 600V.
The Logic Inputs are CMOS/TTL compatible for ease of interfacing with controlling devices.
