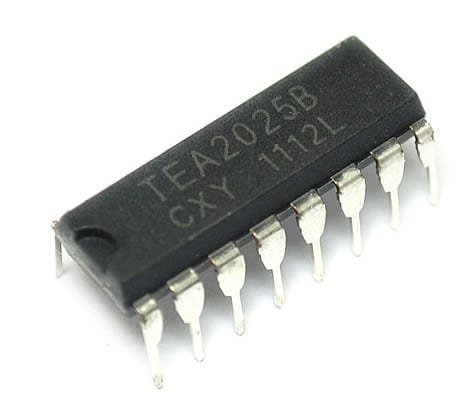

TEA2025B “Stereo Audio Amplifier”

The TEA2025B/Dis a monolithic integrated circuit in 12+2+2 Powerdip and 12+4+4 SO, intended for use as dual or bridge power audio amplifier portable radio cassette players.

* DUAL OR BRIDGE CONNECTION MODES
* FEW EXTERNAL COMPONENTS
* SUPPLYVOLTAGEDOWN TO 3V
* HIGHCHANNEL SEPARATION
* VERY LOW SWITCH ON/OFF NOISE
* MAX GAIN OF 45dB WITH ADJUST EXTERNAL RESISTOR
* SOFT CLIPPING
* THERMAL PROTECTION
* 3V < VCC < 15V
* P = 2 �1W, VCC = 6V, RL = 4W
* P = 2 �2.3W, VCC = 9V, RL = 4W
* P = 2 �0.1W, VCC = 3V, RL = 4W
