Description

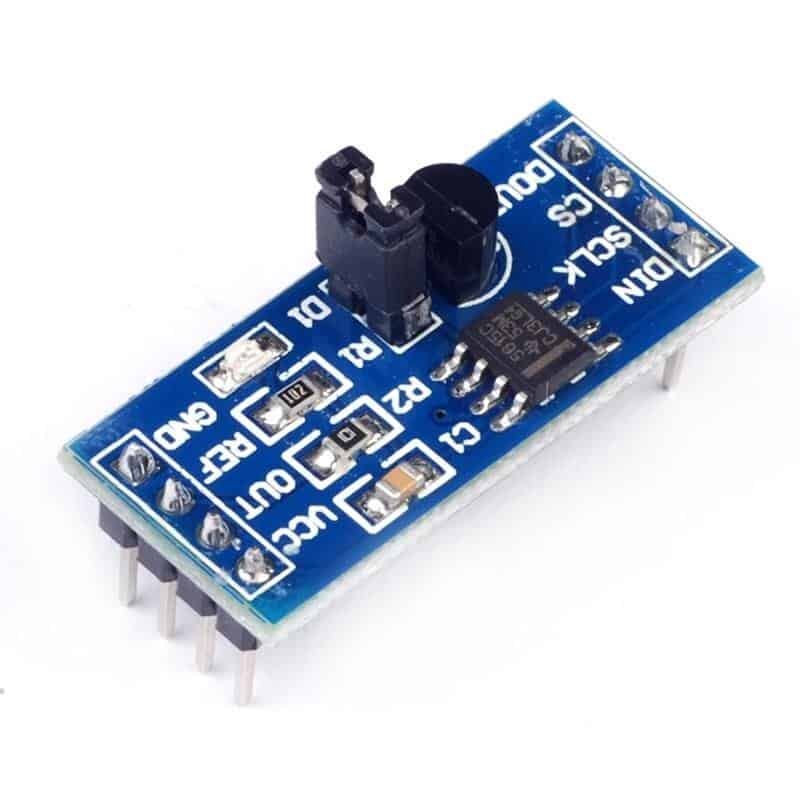

- Onboard TLC5615 chip, TLC5615 is a digital-to-analog converter with a serial interface, its output is a voltage type, the maximum output voltage is twice the reference voltage value, with a power-on reset function, the performance is better than the early current type output DAC is better, only need 3 serial buses to complete the serial input of 10-bit data, easy to interface with industry standard microprocessor or microcontroller (microcontroller).Product Parameter:1. Onboard TL431 voltage reference chip can also be connected to external reference voltage2. All the pins of the chip have been drawn out and can be controlled by the single-chip microcomputer3. Working voltage: 5VInterface specification:
Schematic diagram:
