Description
Description

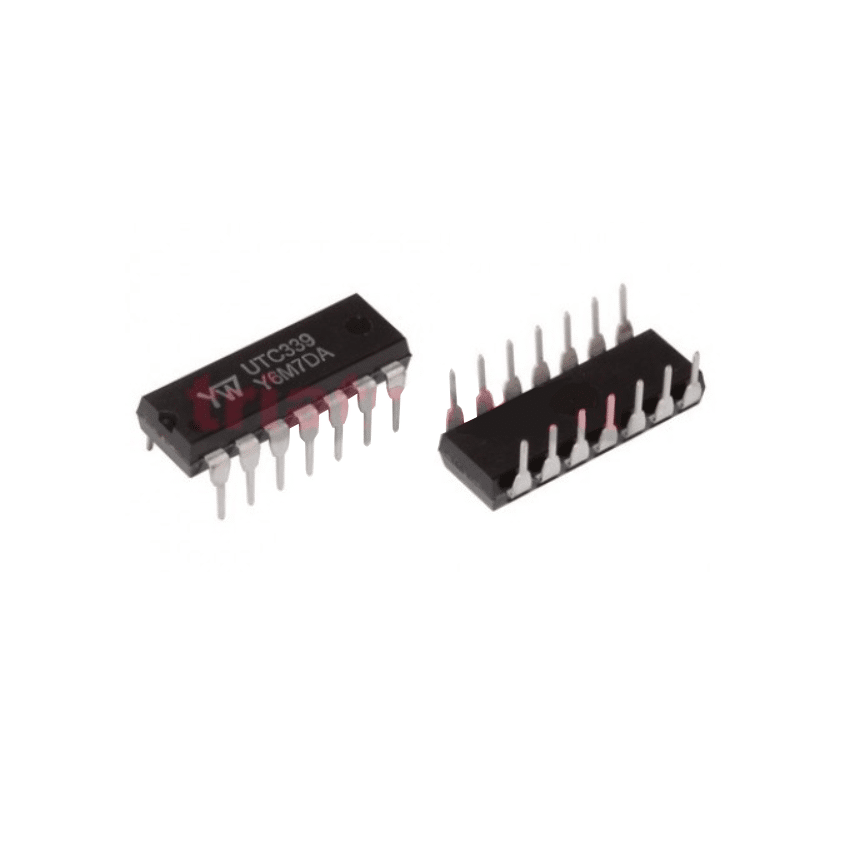

The UTC339 consists of four independent voltage comparators designed specifically to operate from a single power supply over a wide voltage range.
Features
- Single or dual supply operation
- Wide operating supply range(Vcc=2V~36V)
- Input common-mode voltage includes ground
- Low supply current drain ICC=0.8mA(Typical)
- Open collector outputs for wired and connection
- Low input bias current Ibias=25nA(Typical)
- Low output saturation voltage
- Output compatible with TTL ,DTL, and CMOS logic system
Absolute Maximum Ratings(Ta=25°C )
| Characteristic | Symbol | Value | Unit |
| Supply Voltage | Vcc | ±18 OR 36 | V |
| Differential input voltage | VIDiff) | 36 | V |
| Input Voltage | VI | -0.3~36V | V |
| Power Dissipation | Pd | 570 | mW |
| Operating Temperature | Topr | 0 to +70 | °C |
| Storage Temperature | Tstg | -65 to 150 | °C |
Electrical Characteristics
(Vcc=5.0V, Ta=25?,All voltage referenced to GND unless otherwise specified)
| Characteristic | Symbol | Test Condition | Min | Typ. | Max | Unit |
| Input offset voltage | VIO | VCM=0 to Vcc-1.5 Vo(p)=1.4V,Rs=0 | ±1.5 | ±5.0 | mV | |
| Input offset current | IIO | ±2.3 | ±50 | nA | ||
| Input Bias current | Ib | 57 | 250 | nA | ||
| Input Common-mode voltage range | VI(R) | 0 | Vcc- 1.5 | V | ||
| Supply Current | Icc | RL=¥ | 1.1 | 2.0 | mA | |
| Large signal Voltage Gain | GV | Vcc=15V,RL>15kW | 50 | 200 | V/mV | |
| Large signal response time | tres | Vi=TTL logic wing Vref=1.4V,VRL=5V,RL=5.1kW | 350 | ns | ||
| Response time | tres | VRL=5V,RL=5.1kW | 1400 | ns | ||
| Output sink current | Isink | Vi(-)>1V,Vi(+)=0V,Vo(p)<1.5V | 6 | 18 | mA | |
| Output saturation voltage | Vsat | Vi(-)>1V,Vi(+)=0V,Isink=4mA | 140 | 400 | mV | |
| output leakage current | Ileakage | VI(+)=1V,VI(-)=0 | 20 | 40 | mA | |
| Differential input voltage | VI(diff) | 36 | V |
